Case clamp with manual feed

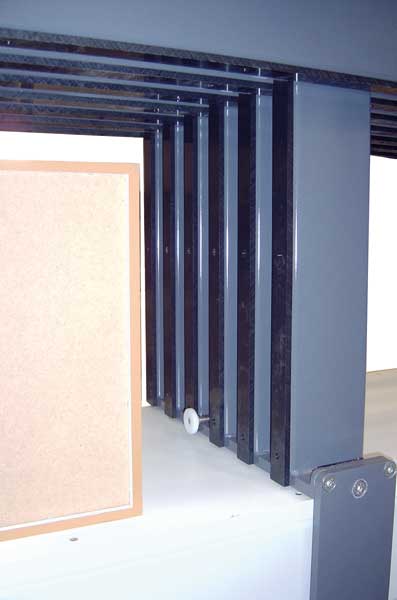

The electro-mechanic case clamp VK011 allows a fast assembly of cabinets without having to make pre-adjustments on the clamp. The strong clamping plates of the VK011 enable all-over clamping of the cases to achieve the highest quality results. A clamping power of up to 2.300 kg can be generated in the press. It is ideally suited for the manufacturing of medium and larger volumes. Thanks to its space-saving design, it can be easily integrated into your production.

The press is also available in an ECO version. The ECO version is equipped with a more simple control panel and the clamping power is controlled by means of a potentiometer. The VK011-ECO offers you all advantages of a well-equipped case clamp, adapted to the production of small and medium volumes.

  • High flexibility:Pressing pressure is variably adjustable. Great variety of different cabinet dimensions possible
  • Maximum output due to positioning speed of up to 54 mm/sec (ECO up to 29 mm/sec)
  • Intuitive operation via touch screen display (standard) and joystick (ECO version)
  • High safety standards due to CE-conformity e.g. 2-hand-operation, security fence etc.
  • Sturdy design, linear guides and ball screws lead to the highest precision
  • Plug & Play

  • Vertical press plate (150 x 50 mm)
  • Horizontal press plate (150 x 50 mm)
  • Preselection of pressing time
  • Max. pressing pressure 1,800 kg (horizontal), 2,300 kg (vertical)
  • Machine operation via touch panel or joystick (ECO)
  • 2-hand operation

  • Light barrier (not available in ECO version)
  • Automatic feeding unit
  • Pneumatic ari cushion table
  • Pre-assembly table
