SPRINT-W select.line / Caravan

WoodWelding® machine for inserting Würth COLDMELT®-dowels for batch size 1 production

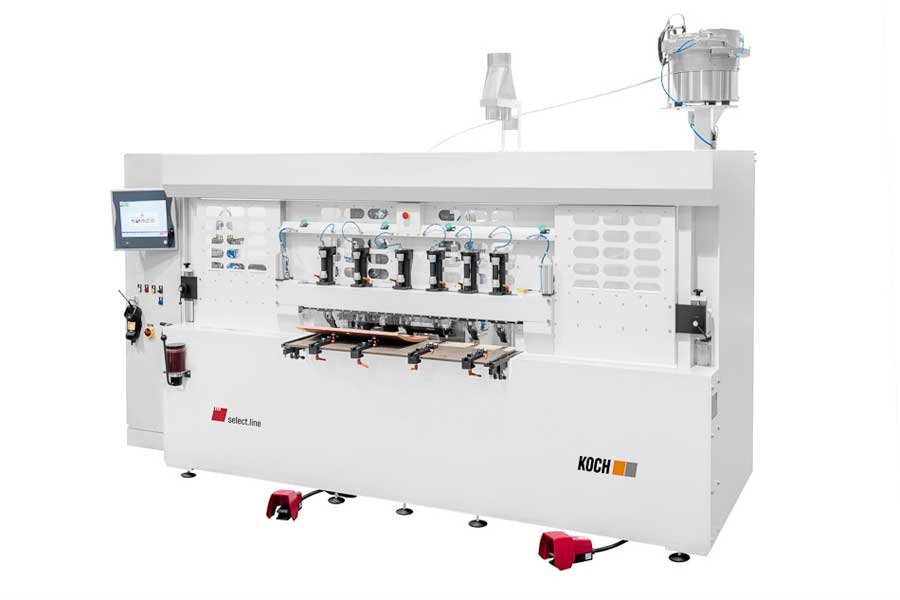

The single-sided machine SPRINT-W select.line is specially designed for the drilling, routing, inserting and melting of WÜRTH COLDMELT®-dowels and therefore allows workpiece processing with the innovative WoodWelding® technology.

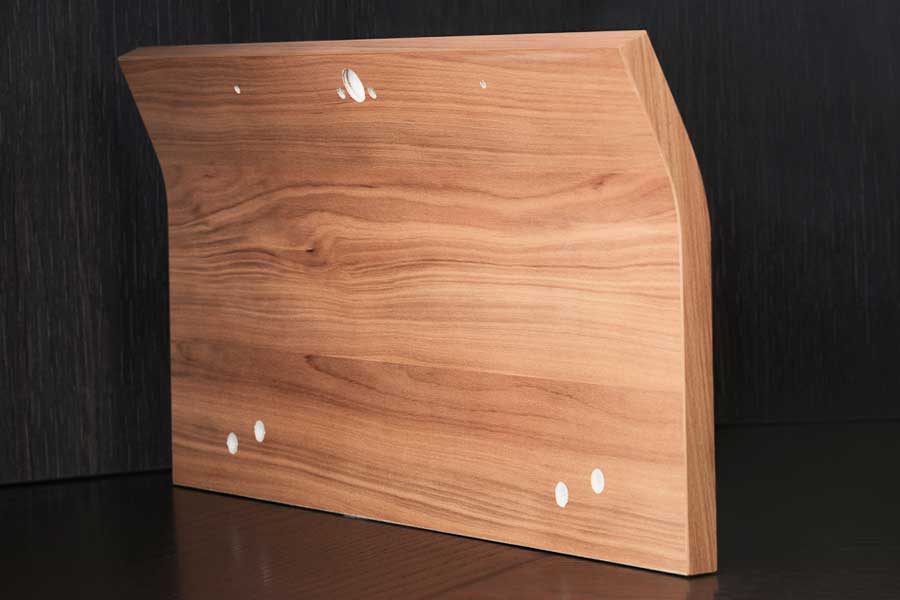

The WoodWelding® machine is ideal for the processing of special parts for batch size 1 production such as cabinet parts as well as curved furniture doors made with lightweight materials with a panel thickness from 12 mm up to 20 mm. The field of application of the machine is mainly the interior finishing for the Caravan/RV industry.

Elements of the SPRINT-W select.line are based on the patented WoodWelding® Technology of WoodWelding SA and sublicensed from Adolf Würth GmbH & Co KG for Europe. COLDMELT® is a trademark owned by WoodWelding SA registered in Europe.

  • WoodWelding® is an innovative technology for processing lightweight panels and a cost-saving alternative for dowel connections with chipboard panels
  • High flexibility due to the machining of straight and curved parts
  • Milling-cutter holder with collet chuck ER32 for an optimized routing and milling quality
  • Drilling unit with a high-precision true running accuracy
  • High precision due to solid and robust design
  • Maximum availability due to brand-name and quality components

  • Horizontal drilling unit with individually controlled drilling spindles
  • Vertical drilling station with individually controlled drilling spindles
  • Vertical routing unit
  • WoodWelding®-unit for COLDMELT®-dowels
  • Depth measuring sensor (patent granted)
  • Bar code reader
  • Max. stock width: 1,200 mm / 47.24”

  • Additional working units for all-purpose use
